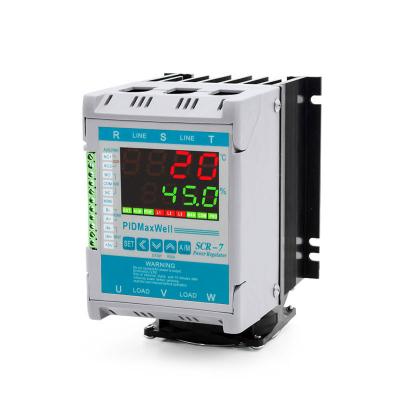

Regulador de potencia SCR trifásico de entrada múltiple

- Regulador de potencia SCR trifásico - 0-10V,4-20mA,0-5V, entrada de potenciómetro - Carga 24~480Vac - 40amps,60amps,75amps,100amps - Pantalla LED digital - Ideal para aplicación resistiva

● Regulador de potencia SCR trifásico ● Entrada universal, compatible con todas las entradas analógicas ● Carga de 24~480 Vac ● 40 amperios, 60 amperios, 75 amperios opcionales ● Pantalla LED digital ● Ideal para aplicaciones resistivas

- Regulador de potencia SCR trifásico (serie TC-200S) - 0-10 V, 4-20 mA, 0-5 V, entrada de potenciómetro - Carga de 220~480 Vac (+/-15%) - 100 amperios, 125 amperios, 150 amperios, 175 amperios, 200 amperios, máximo 200 amperios - Pantalla LED digital - Ideal para aplicación resistiva, funciona para conexión estrella o conexión delta

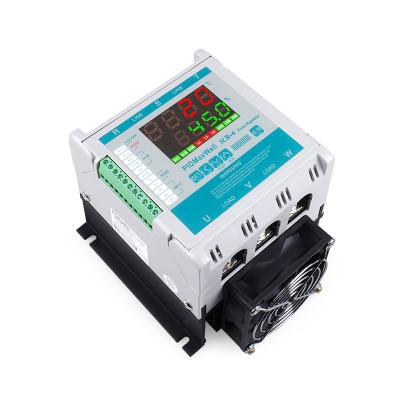

La serie SCR-51 es un regulador de potencia SCR trifásico compacto y económico, ideal para cargas resistivas. Incorpora disipador de calor y ventiladores de refrigeración, lo que facilita su uso. Admite cargas desde 40 A hasta 100 A e incluye protección térmica contra sobrecalentamiento para una protección constante del sistema. Su pantalla digital muestra claramente la temperatura y la indicación de entrada/salida.

The PT100-8 is a probe-type Platinum Resistance Thermometer (PT100 RTD) distinguished by its adjustable insertion depth — a key feature that sets it apart from fixed-length sensors. A stainless steel compression fitting is integrated into the assembly, forming a liquid-tight or pressure-tight seal against the process wall while allowing the operator to slide and lock the probe at any desired insertion depth before or after installation. This eliminates the need to specify a fixed immersion length at the time of ordering and greatly simplifies retrofitting into existing equipment. The probe is constructed from 304 stainless steel and is available in diameters of 4 mm, 5 mm, and 6 mm. The lead cable is shielded with a metal braid and covered with PTFE insulation, delivering low noise, high mechanical strength, and excellent resistance to elevated temperatures. The PT100-8 is compatible with a wide range of process fittings — including NPT, BSP, and metric threads — and is available in a waterproof configuration, making it suitable for measuring the temperature of both air and liquids across diverse industrial environments.

La serie SCR-51 es un regulador de potencia SCR trifásico compacto y económico, ideal para cargas resistivas. Incorpora disipador de calor y ventiladores de refrigeración, lo que facilita su uso. Admite cargas desde 40 A hasta 100 A e incluye protección térmica contra sobrecalentamiento para una protección constante del sistema. Su pantalla digital muestra claramente la temperatura y la indicación de entrada/salida.

● MW-DT-50 ● Tamaño: 50 mm*100 mm*96 mm ● Disipador de calor para SSR de 60 A ● Montaje en panel y montaje en riel DIN con abrazaderas ● Disipador de calor de aluminio ● Para SSR monofásico

The JX-1DA48 (black flip-cover housing) and KT-1DA48 (grey housing) are single-phase, DC-controlled AC solid state relays designed as direct-fit, cost-effective alternatives to Omron G3NA-style SSRs. Both variants share identical electrical specifications and the same compact physical footprint, differing only in housing style and colour. Accepting a DC control voltage of 3.2–32 VDC, these relays are directly compatible with PLC transistor outputs, microcontroller I/O, and standard industrial DC control signals. The AC load side supports 24–480 VAC at 50/60 Hz, covering 110 V, 220 V, 380 V, and 480 V systems worldwide. Load current ratings of 10 A, 25 A, and 40 A are available, with all three ratings sharing the same physical dimensions for easy interchangeability. Zero-crossing trigger technology ensures switching occurs at the natural zero-crossing point of the AC waveform, minimising EMI and extending load service life. A built-in RC snubber circuit is incorporated across all three current ratings, providing additional protection against voltage transients without requiring external components. The 10 A, 25 A, and 40 A models all use a TRIAC output stage, offering reliable bidirectional switching. An LED status indicator provides instant visual confirmation of relay activation. The panel-mount housing includes a protective cover (JX-1DA48) for added terminal protection. Private label and custom logo laser printing are available on request.
