Controlador de temperatura de bajo costo CH102 CH402 CH702 CH902

CH102, CH402, CH702, CH902 es un controlador muy popular en los mercados, viene con relé y salida de unidad SSR, relé y salida de unidad SSR al mismo tiempo, facilitado con diferentes terminales, si desea utilizar la salida de relé, luego conecte su contratista de CA o SSR con el terminal de salida del relé, si desea utilizar la salida del controlador SSR, conecte su relé de estado sólido con el terminal de salida del controlador SSR, con 1 alarma y funciona en una amplia gama de fuentes de alimentación, funciona con entradas termocupla y RTD a pesar de que el costo es muy competitivo.

  • marca:

    MAXWELL
  • artículo no.:

    CH102,CH402,CH702,CH902
  • orden mínima:

    1 PCS
  • Peso del Producto:

    170 g-350 g

Controlador de temperatura de bajo costo CH102,CH402,CH702,CH902 -Características clave



Salida de relé y salida de unidad SSR, campo de dos salidas seleccionables
● Entrada universal (compatible con entradas de termopar y RTD)
● Modo de control PID o modo de control ON/OFF
● 1 alarma
● Límite alto/bajo del valor de configuración
● Protección de acceso
● Rentable
● Control de calefacción+refrigeración configurable
● Fuente de alimentación: 100-240

Vac

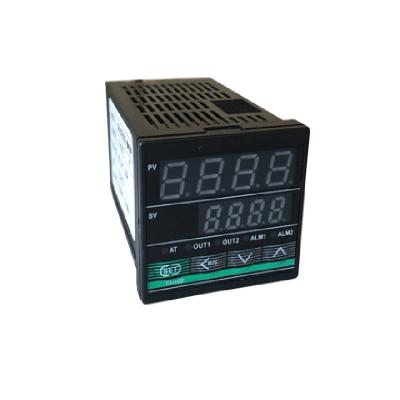

-Información para pedidos N.º de artículo: CH102-FK02-M*AN Salida de relé + accionamiento SSR, 1 alarma, 48 mm*CH402

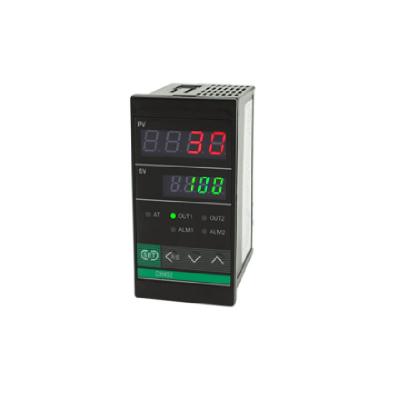

-FK02-M*AN Salida de relé+unidad SSR, 1 alarma, 48 mm*96 mm (configuración vertical)
N.º de artículo: CH502-FK02-M*AN Salida de relé+unidad SSR, 1 alarma, 96 mm*48 mm( configuración horizontal)
N.º de artículo: CH702-FK02-M*AN Salida de relé+unidad SSR, 1 alarma, 72 mm*72 mm
N.º de artículo: CH902-FK02-M*AN Salida de relé+unidad SSR, 1 alarma, 96 mm*96 mm


-Haga clic aquí para ver las instrucciones manual de este modelo
CH102,CH402,CH702,CH902 manual de usuario
